Lima Locomotive Works, Inc.

Photo Credit:
George R. Kadelak collection (BP 10-1918)

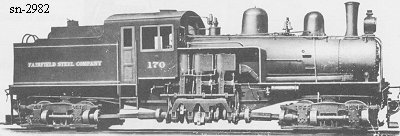

Shop Number 2982 - Built for: Fairfield Steel Co.
{2,416th Lima Built Shay}
Built:
10-19-1918
Class:
B
70-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 13 x 15
Gear Ratio:
2.278
Wheel Dia.:
40"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 56"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
32,369 Lbs.
 Factor of
Adhesion:
5.34
Maximum
Safe Speed:
21.0
Fuel Type:
Oil
Fuel Capacity:
1,500 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
141,600
Owners:
Fairfield Steel Co. (Tennessee Coal, Iron & RR Co.) #170, Fairfield, AL
(11-20-1925) Converted to coal burner
(3-28-1931) Tennessee Coal, Iron & RR Co. #170, Pratt City, AL
Disposition: (1937) Scrapped at Pratt City, AL
Additional Notes:
