Lima Locomotive Works, Inc.

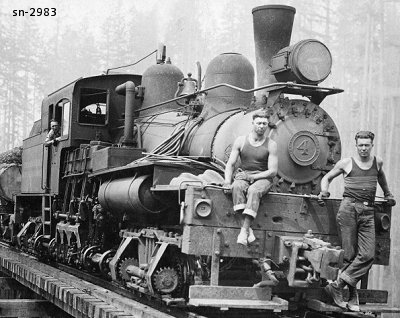

Photo Credit:
Oregon Historical Society Research Library
Shop Number 2983 - Built for: Columbia Tbr. Co.
{2,417th Lima Built Shay}
Built:
9-6-1918
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
22,563 Lbs.
Factor of
Adhesion:

5.19
Maximum
Safe Speed:

17.2
Fuel Type:
Oil
Fuel Capacity:
900 Gals.
Water Capacity:
1,750 Gallons
Empty Weight:
As built
98,500
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Columbia Tbr. Co., Goble, Nehalem & Pacific RY #4, Goble, OR
(7-29-1922) Clark & Wilson Lbr. Co. #4, Goble, OR
(1927) Clark & Wilson Lbr. Co. #4, Scappoose, OR
(1930) Clark & Wilson Lbr. Co. #4, Wilark, OR
Disposition: Scrapped
Additional Notes:
