Lima Locomotive Works, Inc.

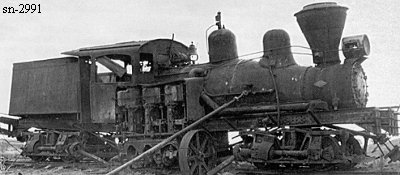

Photo Credit:
Thomas Lawson, Jr. collection (7-4-1933)
Shop Number 2991 - Built for: Lutcher & Moore Lbr. Co.
{2,425th Lima Built Shay}
Built:
9-20-1918
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
5.00
 Maximum
Safe Speed:
17.2
Fuel Type:
Soft Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
2,200 Gallons
Empty Weight:
As built
89,500
Owners:
Woodward, Wight & Co. (D), New Orleans, LA
Lutcher & Moore Lbr. Co. #13, Starks, LA
Disposition: (c1933) Scrapped
Additional Notes: Photo just before scrapping
