Lima Locomotive Works, Inc.

Photo Credit:
Marc Reusser collection

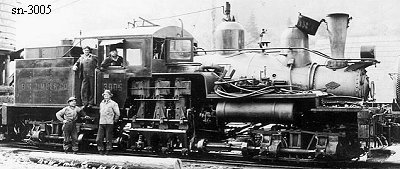

Shop Number 3005 - Built for: Spruce Production Division (U. S. Army)
{3,439th Lima Built Shay}
Built:
4-30-1919
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

5.76
Maximum
Safe Speed:

17.1
Fuel Type:
Oil
Fuel Capacity:
800 Gals.
Water Capacity:
1,560 Gallons
Empty Weight:
As built
81,000
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
(4-30-1919) Spruce Production Corp. (U. S. Army) #426, Vancouver, WA
(4-30-1919) Siems, Carey-H. S. Kerbaugh Corp.* #426, Lake Pleasant, WA (assigned, no longer needed)
(4-30-1919) Delivered directly to Vancouver Barracks, Vancouver, WA; For sale
(6-2-1919) Wisconsin Log. & Tbr. Co., Oak Point, WA
(by 9-17-1924) Midway Log. Co., Stella, WA
(10-11-1927) Brix & Woodard Tbr. Co. #3005, Jewell, OR
Tideport Logging Co., Jewell, OR
Disposition: Scrapped
Additional Notes: *Cost-plus contractor for Spruce Production Division (U. S. Army)
