Lima Locomotive Works, Inc.

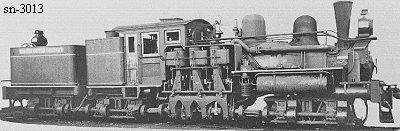

Photo Credit:
George R. Kadelak collection (BP 11-1918)
Shop Number 3013 - Built for: Braden Copper Co.
{2,446th Lima Built Shay}
Built:
11-5-1918
Class:
C
60-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.529
Wheel Dia.:
32"
Gauge:
30"
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
25,820 Lbs.
 Factor of
Adhesion:
5.11
Maximum
Safe Speed:
15.1
Fuel Type:
Oil
Fuel Capacity:
1,600 Gals.
Water Capacity:
2,000 Gallons
Empty Weight:
As built
109,600
Owners:
Braden Copper Co. #19, Rancagua, Chile
Disposition: Scrapped
Additional Notes:
