Lima Locomotive Works, Inc.

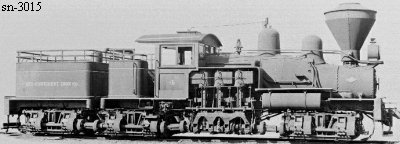

Photo Credit:
George R. Kadelak collection (BP 11-1918)
Shop Number 3015 - Built for: Mid-Continent Iron Co.
{2,448th Lima Built Shay}
Built:
11-4-1918
Class:
C
60-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.529
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
28,820 Lbs.
 Factor of
Adhesion:
4.96
 Maximum
Safe Speed:
15.1
Fuel Type:
Coal
Fuel Capacity:
3.5 Tons
Water Capacity:
2,000 Gallons
Empty Weight:
As built
105,400
Owners: (Includes new data after 2018 Shay book completed)
Mid-Continent Iron Co. #4, Fremont, MO
(by 3-31-1926) Birmingham Rail & Loco. Co. (D) #1658, Birmingham, AL
(1-12-1937) Tennessee Eastman Corp. #4, Kingsport, TN; For:
Chemical Wood Corp., (Tennessee Eastman Co.) #4, Altapass, NC
Disposition: (12-1940) Scrapped
Additional Notes:
