Lima Machine Works

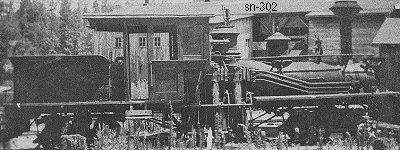

Photo Credit:
Birmingham Rail & Locomotive Company Archives (c1910)
Shop Number 302 - Built for: Mitchell Brothers
{266th Lima Built Shay}
Built:
8-8-1890
Class:
B
18-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8x8
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
36"
Boiler:
[Style - Dia.]
W.T. - 30"
Boiler Pressure:
In Lbs. (PSI)
150
 Tractive Effort:
10,205 Lbs.
 Factor of
Adhesion:
3.91
 Maximum
Safe Speed:
10.1
Fuel Type:
Coal
Fuel Capacity:
1 Ton
Water Capacity:
680 Gallons
Empty Weight:
As built
32,000
Owners:
Mitchell Brothers, Jennings & Northeastern RR #1, Jennings, MI
Southern Iron & Equip. Co.(D) #468, Atlanta, GA
(10-14-1906) Holmes Lbr. Co. #1, Scottsville, AL
Birmingham Rail & Loco. Co.(D), Birmingham, AL
(12-9-1910) O'Quinn-Williams Lbr. Co. Ltd., Natchitoches, LA
W. H. Gerhart Lbr. Co.,Derry & Southwestern RR, Derry, LA
(8-1913) W. D. Moore Lbr. Co., Derry, LA
(1916) Richards Lbr. Co., Derry, LA
(3-1918) Clark & Morse Lbr. Co. #1, Derry, LA
Disposition: (11-7-1921) Scrapped
Additional Notes:
