Lima Locomotive Works, Inc.

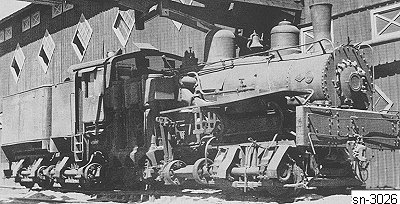

Photo Credit:
by R. H. Kindig

Shop Number 3026	-	Built for: Elkhorn Piney Coal Mining Co.
{2,455th Lima Built Shay}

Built: 3-3-1919	Class: C 125-3	Trucks: 3	Cylinders: [#-Dia. x Stroke] 3 - 17 x 18
Gear Ratio: 2.05	Wheel Dia.: 48"	Gauge: std.	Boiler: [Style - Dia.] E.W.T. - 62.25"
Boiler Pressure: In Lbs. (PSI) 200	Tractive Effort: 49,988 Lbs.	Factor of Adhesion: 5.48	Maximum Safe Speed: 27.9
Fuel Type: Coal	Fuel Capacity: 9 Tons	Water Capacity: 4,000 Gallons	Empty Weight: As built 221,000
Owners: Elkhorn Piney Coal Mining Co. #6, Powellton, WV (1929) Southern Iron & Equip. Co. (D) #2220, Atlanta, GA (1929) Uvalde Rock Asphalt Co. #203, Blewett, TX (3-21-1935) Southern Iron & Equip. Co. (D) #2354, Atlanta, GA (4-2-1935) Prestridge and Seligman #4, Grants, NM (1936) Arizona Lbr. & Tbr. Co. Central Arizona RR #4 (2nd), Flagstaff, AZ (1941) Saginaw & Manistee Lbr. Co. #4, Williams, AZ
Disposition: Scrapped
Additional Notes: Carl Seligman and M. R. Prestridge owned Bernalillo Mercantile Co. (B. M. Co.) and formed the new company of Prestridge and Seligman to take over logging perations in the Zuni Mountains.
