Lima Locomotive Works, Inc.

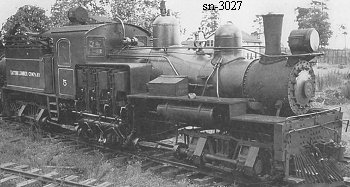

Photo Credit:
Both: by W. H. B. Jones from. D. S. Price collection
Shop Number 3027 - Built for: Tatum Lbr. Co.
{2,456th Lima Built Shay}
Built:
3-3-1919
Class:
B
60-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
23,868 Lbs.
 Factor of
Adhesion:
5.38
Maximum
Safe Speed:
19.4
Fuel Type:
Wood
Fuel Capacity:
2.5 Cords
Water Capacity:
2,000 Gallons
Empty Weight:
As built
107,400
Owners:
Tatum Lbr. Co. #5, Bonhomie, MS
Disposition: (1939) Scrapped
Additional Notes: boiler used with oil well pump
