Lima Locomotive Works, Inc.

Photo Credit:
George R. Kadelak collection (BP 3-1919)

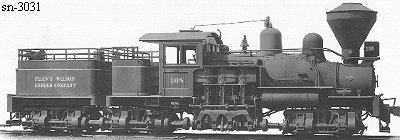

Shop Number 3031 - Built for: Peavy Wilson Lbr. Co.
{2,460th Lima Built Shay}
Built:
3-31-1919
Class:
C
60-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.529
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
25,820 Lbs.
Factor of
Adhesion:

4.61
Maximum
Safe Speed:

15.1
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
2,000 Gallons
Empty Weight:
As built
100,000
Owners:
Peavy Wilson Lbr. Co. #108 later #106, Peason, LA
(8-4-1934) Hillyer-Edwards-Fuller, Inc. #106, Glenmora, LA
(10-9-1935) Magnolia Development Co. #106, Glenmora, LA
Disposition: Scrapped
Additional Notes:
