Lima Locomotive Works, Inc.

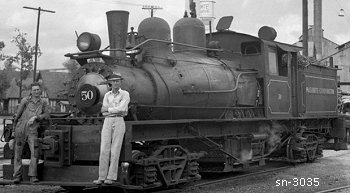

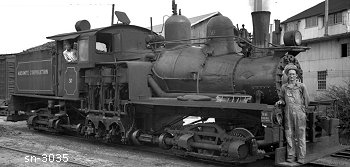

Photo Credit:
Both: by William H B Jones (1930's)
Shop Number 3035 - Built for: Wausau Southern Lbr. Co.
{2,464th Lima Built Shay}
Built:
6-3-1919
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
33"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
21,879 Lbs.
 Factor of
Adhesion:
5.21
Maximum
Safe Speed:
17.8
Fuel Type:
Coal
Fuel Capacity:
3.75 Tons
Water Capacity:
2,000 Gallons
Empty Weight:
As built
90,800
Owners:
Woodward, Wight & Co. (D), New Orleans, LA
Wausau Southern Lbr. Co. #2 later #50, Laurel, MS
(7-27-1931) Masonite Corp. #50, Laurel, MS
Disposition: Scrapped
Additional Notes:
