Lima Locomotive Works, Inc.

Photo Credit:
Marc Reusser collection

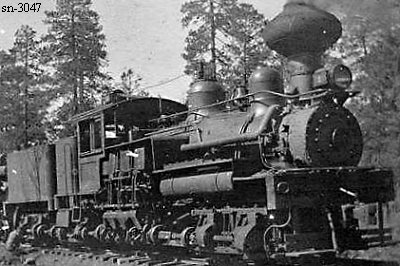

Shop Number 3047 - Built for: Apache Lbr. Co.
{2,470th Lima Built Shay}
Built:
9-2-1919
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
30,375 Lbs.
Factor of
Adhesion:

5.37
Maximum
Safe Speed:

19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
4,000 Gallons
Empty Weight:
As built
126,700
Owners:
Apache Lbr. Co. #1 (2nd), Cooley, AZ
Apache RY #1 (2nd), McNary, AZ
(1924) W. M. Cady Lbr. Co. #2, McNary, AZ
(1924) Flagstaff Lbr. Co. #103 later #1 (2nd), Flagstaff, AZ
(8-25-1927) Cady Lbr. Corp. #1, McNary, AZ
Disposition: Scrapped
Additional Notes:
