Lima Machine Works

Photo Credit:
Emil Anderson collection

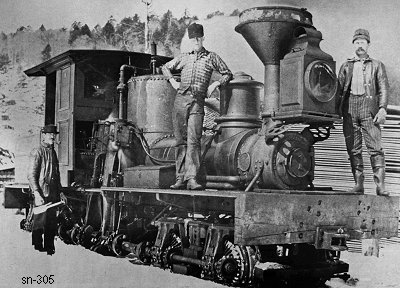

Shop Number 305 - Built for: Iron City Lbr. Co.
{269th Lima Built Shay}
Built:
8-11-1890
Class:
A
13-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 7x12
Gear Ratio:
2.176
Wheel Dia.:
26"
Gauge:
36"
Boiler:
[Style - Dia.]

Boot - 36"
Boiler Pressure:
In Lbs. (PSI)
150
Tractive Effort:
5,536 Lbs.
Factor of
Adhesion:

5.05
Maximum
Safe Speed:

14.2
Fuel Type:
Wood
Fuel Capacity:
0.75 Cord
Water Capacity:
486 Gallons
Empty Weight:
As built
24,000
Owners:
Iron City Lbr. Co., Iron City RR #1, Iron City, PA
(1894) Campbell, Ritts & Co. #1, Marienville, PA
(1898) Amsler & Campbell #1, Loleta, PA
(3-1-1919) Central Pennsylvania Lbr. Co. #51, Loleta, PA
Disposition: Scrapped
Additional Notes:
