Lima Locomotive Works, Inc.

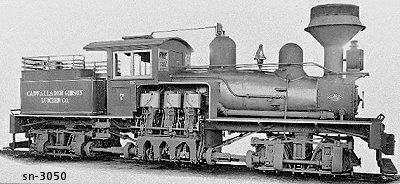

Photo Credit:
George R. Kadelak collection (BP 11-1919)
Shop Number 3050 - Built for: Cadwallader-Gibson Lbr. Co.
{2,472nd Lima Built Shay}
Built:
11-5-1919
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Diam:
29"
Gauge:
std.
Boiler:
[Style - Dia.Dia.]

E.W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
14,316 Lbs.
Factor of
Adhesion:

5.64
Maximum
Safe Speed:

16.8
Fuel Type:
Coal
Fuel Capacity:
1.5 Tons
Water Capacity:
850 Gallons
Empty Weight:
As built
67,925
Owners: (Includes new data after 2018 Shay book completed)
Cadwallader-Gibson Lbr. Co. #7, Limay, Bataan Province, U. S. Territory of the Philippines
Disposition: Scrapped
Additional Notes:
