Lima Locomotive Works, Inc.
Photo Credit:

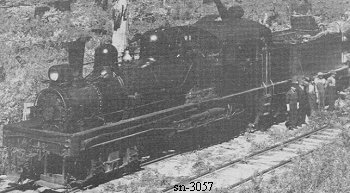

Left: by Darius Kinsey
Right: George R. Kadelak collection (BP 1-1920)
Shop Number 3057 - Built for: The Sound Tbr. Co.
{2,479th Lima Built Shay}
Built:
1-15-1920
Class:
C
80-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
35,026 Lbs.
 Factor of
Adhesion:
5.44
 Maximum
Safe Speed:
20.9
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
159,400
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
The Sound Tbr. Co. #2, Darrington, WA
(9-5-1944) Washington Veneer Co. #2, Darrington, WA
Disposition: Scrapped
Additional Notes:
