Lima Locomotive Works, Inc.

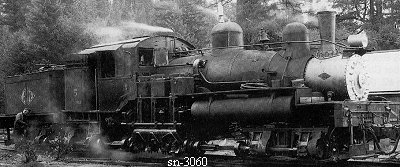

Photo Credit:
Jack Bowden collection from "Railroad Logging in the Klamath Country"
Shop Number 3060 - Built for: Silverton Lbr. Co.
{2,482nd Lima Built Shay}
Built:
3-17-1920
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
33"
Gauge:
std
Boiler:
[Style - Dia.]

E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
33,136 Lbs.
Factor of
Adhesion:

4.43
Maximum
Safe Speed:

17.5
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
115,000
Owners:
Silverton Lbr. Co. #3, Stayton, OR
(6-6-1923) Converted to oil burner
(5-30-1928) Owen-Oregon Lbr. Co. #5, Medford, OR
(2-10-1937) Medford Corp. #5, Medford, OR
Disposition: Scrapped
Additional Notes:
