Lima Locomotive Works, Inc.

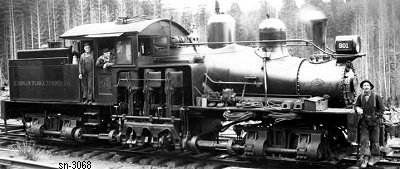

Photo Credit:
by Clark Kinsey
Shop Number 3068 - Built for: Kiernan-Flora Log. Co.
{2,489th Lima Built Shay}
Built:
3-9-1920
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
4.81
 Maximum
Safe Speed:
17.2
Fuel Type:
Oil
Fuel Capacity:
950 Gals.
Water Capacity:
1,750 Gallons
Empty Weight:
As built
89,900
Owners:
Kiernan-Flora Co. #501, Kerry, OR
(4-2-1923) Flora Log, Co. #501, Kerry, OR
Green Mountain Log. Co. #501, Kerry, OR
(6-1927) K. P. Tbr.Co. #127, Neverstill (?Kerry), OR
Disposition: Scrapped
Additional Notes:
