Lima Locomotive Works, Inc.

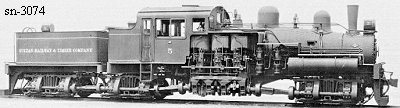

Photo Credit:
George R. Kadelak collection (BP 5-1920)
Shop Number 3074 - Built for: Sultan RY & Tbr. Co.
{2,495th Lima Built Shay}
Built:
5-14-1920
Class:
C
80-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std
Boiler:
[Style - Dia.]

E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
35,026 Lbs.
Factor of
Adhesion:

5.62
Maximum
Safe Speed:

20.9
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,500 Gallons
Empty Weight:
As built
165,600
Owners:
Sultan RY & Tbr. Co. #5, Oso, WA
(2-5-1940) Monroe Log. Co. #5, Lake Stevens, WA
Disposition: (8-27-1946) Scrapped
Additional Notes:
