Lima Locomotive Works, Inc.
Photo Credit:
Left : by unknown (c1936)
Right : by John Henderson (1948)
Shop Number 3075 - Built for: Edward Rutledge Tbr. Co.
{2,496th Lima Built Shay}
Built:
4-21-1920
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
30,376 Lbs.
Factor of
Adhesion:
5.57
Maximum
Safe Speed:
19.0
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
141,600
Owners:
Edward Rutledge Tbr. Co. #104, Coeur d'Alene, ID
(5-16-1924) Potlatch Lbr. Co., Inc. #107, Potlatch, ID
(by 7-23-1926) Converted to coal burner
(1931) Potlatch Forests Inc., Washington Idaho & Montana RY #107, Potlatch, ID
Disposition: (1950) Scrapped
Additional Notes:

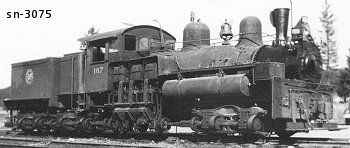

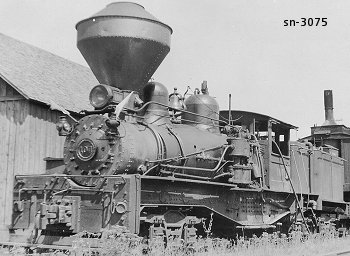

Photo: Three truck Shay #107 and locomotive crane
