Lima Locomotive Works, Inc.

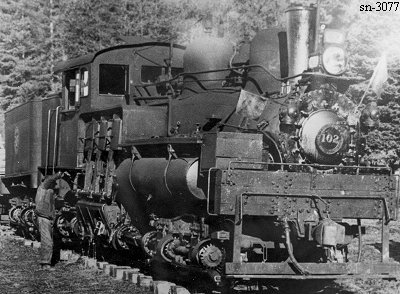

Photo Credit:
John Henderson collection
Shop Number 3077 - Built for: Winton Lbr. Co.
{2,498th Lima Built Shay}
Built:
4-3-1920
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std
Boiler:
[Style - Dia.]

E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
30,376 Lbs.
Factor of
Adhesion:

5.37
Maximum
Safe Speed:

19.0
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
135,600
Owners:
Winton Lbr. Co. #5, Bovill, ID
Edward Rutledge Tbr, Co. #5, Clarkia, ID
(1931) Potlatch Forests Inc., Washington Idaho & Montana RY #102, Potlatch, ID
(9-21-1948) M. B. Log. Co. (Markham Shingle) #102, Markham, WA
Disposition: Scrapped
Additional Notes:
