Lima Locomotive Works, Inc.

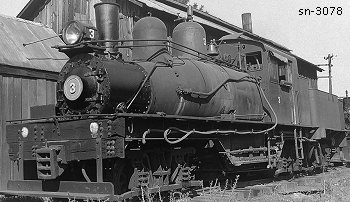

Photo Credit:
Left: .George R. Kadelak collection (1940's)
Right: David Thomas collection (1949)
Shop Number 3078 - Built for: Swayne Lbr. Co.
{2,499th Lima Built Shay}
Built:
4-24-1920
Class:
C
60-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.529
Wheel Dia.:
32"
Gauge:
36"
Boiler:
[Style - Dia.]

E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
25,820 Lbs.
Factor of
Adhesion:

4.67
Maximum
Safe Speed:

15.1
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
2,000 Gallons
Empty Weight:
As built
99,900
Owners:
Swayne Lbr. Co. #2 (2nd), Oroville, CA
(Fall 1939) Michigan-California Lbr. Co., #3 (2nd), Camino, CA
Disposition: (1951) Scrapped
Additional Notes: (1929) home-made piston valves installed
