Lima Locomotive Works, Inc.

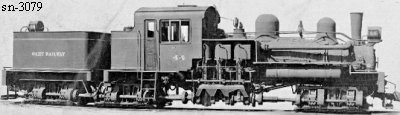

Photo Credit:
Lima Locomotive Works (BP 5-1920)
Shop Number 3079 - Built for: Oahu RY & Land Co.
{2,500th Lima Built Shay}
Built:
5-8-1920
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
34"
Gauge:
36"
Boiler:
[Style - Dia.]

E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
32,162 Lbs.
Factor of
Adhesion:

5.21
Maximum
Safe Speed:

18.0
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
140,000
Owners:
Oahu RY & Land Co. #44, Honolulu, Oahu, Territory of Hawaii
(1935) Needed parts, stored out of service at Waipahu, Oahu, Territory of Hawaii
Disposition: (1948) Scrapped
Additional Notes: (2-26-1926) Only used a few months each year hauling pineapple trains up a 3% grade
The Territory of Hawaii was a U. S. Territory; Shay scrapped before statehood occurred.
