Lima Locomotive Works, Inc.

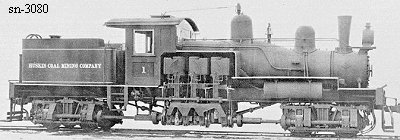

Photo Credit:
George R. Kadelak collection (BP 2-1920)
Shop Number 3080 - Built for: Huskin Coal Mining Co.
{2,501st Lima Built Shay}
Built:
2-25-1920
Class:
B
60-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std
Boiler:
[Style - Dia.]
E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
23,868 Lbs.
 Factor of
Adhesion:
5.51
Maximum
Safe Speed:
19.4
Fuel Type:
Coal
Fuel Capacity:
3.75 Tons
Water Capacity:
2,000 Gallons
Empty Weight:
As built
106,600
Owners:
Huskin Coal Mining Co. #1, Central City, PA
Birmingham Rail & Loco. Co. (D) #1538, Birmingham, AL
(7-28-1924) Batson-Hatten Lbr. Co. #10, Lyman, MS
Disposition: Scrapped
Additional Notes:
