Lima Locomotive Works, Inc.

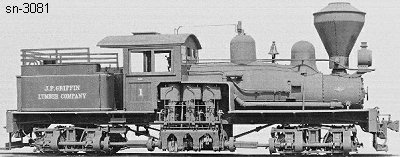

Photo Credit:
George R. Kadelak collection (BP 5-1920)
Shop Number 3081 - Built for: J. P. Griffin Lbr. Co.
{2,502nd Lima Built Shay}
Built:
5-8-1920
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std
Boiler:
[Style - Dia.]

E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
,16,886 Lbs.
Factor of
Adhesion:

5.25
Maximum
Safe Speed:

17.1
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,560 Gallons
Empty Weight:
As built
73,500
Owners:
J. P. Griffin Lbr. Co. #1, Avera, MS
(9-1-1920) Green Lbr. Co. #1, Avera, MS
(11-28-1924) Tallahoma Lbr. Co. #1, Montrose, MS
(4-1-1927) Leased to: Eastman, Gardiner & Co. #1, Sandersville, MS
(4-1927) Pascagoula Hardwood Co. #1, Laurel, MS
(11-29-1935) The Mengel Co. #1, Laurel, MS
Disposition: (1947) Scrapped
Additional Notes:
