Lima Locomotive Works, Inc.

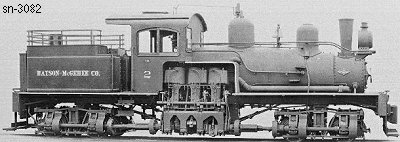

Photo Credit:
George R. Kadelak collection (BP 5-1920)
Shop Number 3082 - Built for: Batson-McGehee Lbr. Co.
{2,503rd Lima Built Shay}
Built:
5-15-1920
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
29"
Gauge:
std
Boiler:
[Style - Dia.]
E.W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
14,315 Lbs.
 Factor of
Adhesion:
5.64
Maximum
Safe Speed:
16.9
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,200 Gallons
Empty Weight:
As built
67,400
Owners:
Batson-McGehee Lbr. Co. #2, Millard, MS
(11-7-1935) Kurth Lbr. & Mfg. Co. #2, Clarksville, TX
(by 5-30-1945) Texas Long Leaf Lbr. Co. #3, New Willard, TX
Disposition: Scrapped
Additional Notes:
