Lima Locomotive Works, Inc.

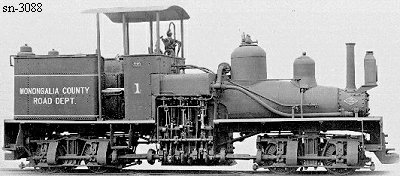

Photo Credit:
George R. Kadelak collection (BP 5-1920)
Shop Number 3088 - Built for: Monongalia County Road Dept.
{2,509th Lima Built Shay}
Built:
5-8-1920
Class:
B
10-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 4.5 x 8
Gear Ratio:
2.467
Wheel Dia.:
22"
Gauge:
24"
Boiler:
[Style - Dia.]

E.W.T. - 18.5"
Boiler Pressure:
In Lbs. (PSI)
170
Tractive Effort:
3,474 Lbs.
Factor of
Adhesion:

7.54
Maximum
Safe Speed:

10.6
Fuel Type:
Coal
Fuel Capacity:
0.5 Ton
Water Capacity:
300 Gallons
Empty Weight:
As built
22,508
Owners:
Monongalia County Road Dept. #1, Maidsville, WV
(by 11-23-1923) Sold as junk for $100
Disposition: Scrapped
Additional Notes:
