Lima Machine Works

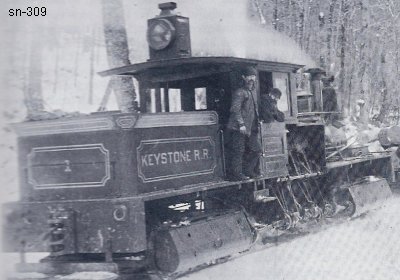

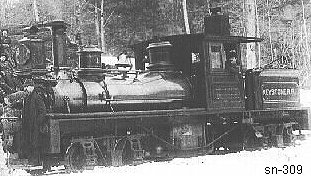

Photo Credit:
Left:David Thomas collection
Right: by Herbert Johnson (1892)
Shop Number 309 - Built for: Rich Lbr. Co.
{273rd Lima Built Shay}
Built:
8-26-1890
Class:
B
20-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 9x8
Gear Ratio:
2.176
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T.- 34"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
9,065 Lbs.
Factor of
Adhesion:

4.96
Maximum
Safe Speed:

15.3
Fuel Type:
Coal
Fuel Capacity:
1 Ton
Water Capacity:
750 Gallons
Empty Weight:
As built
35,900
Owners:
Rich Lbr. Co., Keystone RR #1, Gardeau, PA
(1897) Georgetown Loco. & Supply Co.(D), Georgetown, PA
(1897) Chehalis River Lbr. & Shingle Co., Galvin, WA
(8-20-1919) Krumm & Sinnestad Log. Co., Oakville, WA
(2-21-1922) Wilson & Hollenbach, Liberty Bond, WA
Disposition: (6-8-1927) Scrapped
Additional Notes:
