Lima Locomotive Works, Inc.

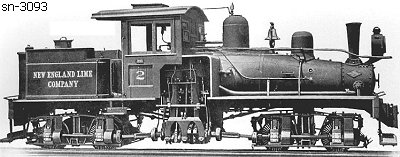

Photo Credit:
David Thomas collection (BP 7-1920)
Shop Number 3093 - Built for: New England Lime Co.
{2,514th Lima Built Shay}
Built:
7-30-1920
Class:
A
18-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 7 x 12
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
36"
Boiler:
[Style - Dia.]
E.W.T. - 27.5"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
8,334 Lbs.
 Factor of
Adhesion:
5.44
Maximum
Safe Speed:
10.1
Fuel Type:
Coal
Fuel Capacity:
1 Ton
Water Capacity:
730 Gallons
Empty Weight:
As built
37,400
Owners:
New England Lime Co. #2, Renfrew, MA
New England Lime Co. #2, Adams, MA
Disposition: Scrapped
Additional Notes:
