Lima Locomotive Works, Inc.

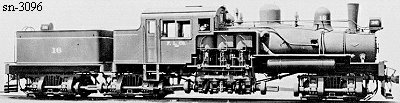

Photo Credit:
Top: George R. Kadelak collection (BP 7-1920)
Bottom: Martin E. Hansen collection (6-26-1943)
Shop Number 3096 - Built for: Fernwood Lbr. Co.
{2,517th Lima Built Shay}
Built:
7-30-1920
Class:
C
80-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
35,026 Lbs.
 Factor of
Adhesion:
5.55
 Maximum
Safe Speed:
20.9
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,500 Gallons
Empty Weight:
As built
158,800
Owners:
Fernwood Lbr. Co. #16, Fernwood, MS
(7-23-1924) For sale
(2-25-1930) Polk Operating Co. #6, Grand Ronde, OR
(3-30-1944) Willamina & Grand Ronde RY Co., Willamina & Grand Ronde RY #6, Grand Ronde, OR
Disposition: Scrapped
Additional Notes: While at Fernwood Lumber Co., Shays were not part of the Fernwood, Columbia & Gulf RY, which was also owned by the same owners.
