Lima Locomotive Works, Inc.

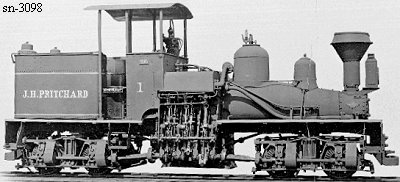

Photo Credit:
George R. Kadelak collection (BP 5-1920)
Shop Number 3098 - Built for: J. H. Pritchard Lbr. Co.
{2,519th Lima Built Shay}
Built:
5-15-1920
Class:
B
10-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 4.5 x 8
Gear Ratio:
2.467
Wheel Dia.:
22"
Gauge:
36"
Boiler:
[Style - Dia.]
E.W.T. - 18.25"
Boiler Pressure:
In Lbs. (PSI)
170
 Tractive Effort:
3,474 Lbs.
 Factor of
Adhesion:
7.42
 Maximum
Safe Speed:
10.6
Fuel Type:
Wood
Fuel Capacity:
0.33 Cord
Water Capacity:
300 Gallons
Empty Weight:
As built
22,600
Owners:
Walter A. Zelnicker Supply Co. (D), St. Louis, MO
J. H. Pritchard Lbr. Co. #1, Lonsdale, AR
(9-21-1923) Stored
R. L. Collins, Lonsdale, AR
(1-28-1926) For sale
(6-6-1929) Phoenix Utility Co., Hot Springs, AR
(6-15-1936) Batesville White Lime Co., Batesville, AR
Disposition: Scrapped
Additional Notes:
