Lima Locomotive Works, Inc.

Photo Credit:
George R. Kadelak collection (BP 8-1920)

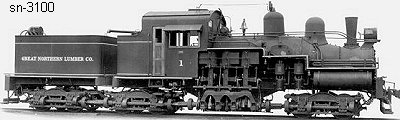

Shop Number 3100 - Built for: Great Northern Lbr. Co.
{2,521st Lima Built Shay}
Built:
8-23-1920
Class:
C
60-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.529
Wheel Dia.:
32"
Gauge:
std
Boiler:
[Style - Dia.]

E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
25,820 Lbs.
Factor of
Adhesion:

5.46
Maximum
Safe Speed:

15.1
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
116,000
Owners:
Great Northern Lbr. Co. #1, Leavenworth, WA
(3-7-1921) Mogul Log. Co., Glacier, WA
(1921) Allen-McRae Log. Co., Glacier, WA
(5-4-1921) Allen & Nolte Log. Co., Glacier, WA
(12-18-1924) Allen-Nolte Log. Co. #1, Glacier, WA
(c1924) Irving-Hartley Log. Co. #1, Twin, WA
(6-25-1927) Crescent Log. Co. #1, Port Angeles, WA
(1931) Crescent Log. Co. #1, Piedmont, WA
(by 5-5-1947) Ozette Tbr. Co. #1, Lake Ozette, WA
Disposition: Scrapped
Additional Notes:
