Lima Locomotive Works, Inc.

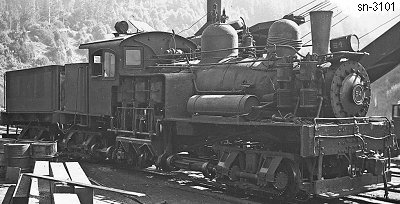

Photo Credit:
Martin E. Hansen collection (1939)
Shop Number 3101 - Built for: Finkbine Lbr. Co.
{2,522nd Lima Built Shay}
Built:
7-24-1920
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std
Boiler:
[Style - Dia.]

E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
30,375 Lbs.
Factor of
Adhesion:

5.40
Maximum
Safe Speed:

19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
4,000 Gallons
Empty Weight:
As built
127,900
Owners: (Includes new data after 2018 Shay book completed)
Finkbine Lbr. Co. #54, D'Lo, MS
(by 6-18-1926) Finkbine-Guild Lbr. Co. #54, Fort Bragg, CA
(2-21-1928) Southern Redwood Corp. #54, Rockport, CA
(8-14-1939) Rockport Redwood Co. #54, Rockport, CA
(8-14-1939) Leased to: Cottoneva Redwood Co. #54, Rockport, CA
(7-2-1941) Atlantic, Gulf & Pacific Co. of Manila #54, Dahican, Camarines Norte, U. S. Territory of the Philippines
Disposition: Scrapped
Additional Notes:
