Lima Locomotive Works, Inc.

Photo Credit:
George R. Kadelak collection (BP 7-1920)

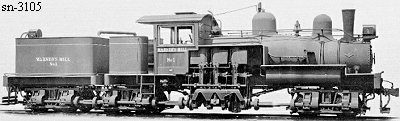

Shop Number 3105 - Built for: Warner Sugar Refining Co.
{2,526th Lima Built Shay}
Built:
7-30-1920
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
5.20
Maximum
Safe Speed:
19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
126,000
Owners:
Warner Sugar Refining Co. #1 "WARNER'S MILL", North Stratford, NH
New Hampshire Stave & Heading Mill #1, North Stratford, NH
(by 4-21-1928) For sale
(11-9-1928) Southern Iron & Equip. Co. (D) #2243, Atlanta, GA
(1-14-1929) Vredenburgh Saw Mill Co. #18, Vredenburgh, Al
Disposition: Scrapped
Additional Notes:
