Lima Locomotive Works, Inc.

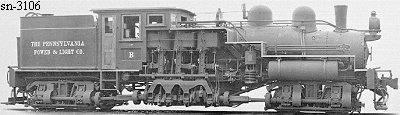

Photo Credit:
George R. Kadelak collection (BP 10-1920)
Shop Number 3106 - Built for: Phoenix Utility Co.
{2,527th Lima Built Shay}
Built:
10-29-1920
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
4.76
 Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
86,100
Owners:
Phoenix Utility Co. (Pennsylvania Power & Light Co.) #B, Hauto, PA
(by 3-30-1928) Eastern Pennsylvania Electric Co., (Pennsylvania Power & Light Co.) #B, Pine Grove, PA
(2-1932) The Pennsylvania Power & Light Co. #B, Pine Grove, PA
Disposition: (2-19-1948) Scrapped
Additional Notes:
