Lima Locomotive Works, Inc.

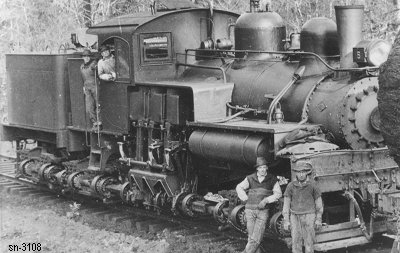

Photo Credit:
Steve Hauff collection
Shop Number 3108 - Built for: Merrill & Ring Lbr. Co.
{2,529th Lima Built Shay}
Built:
8-18-1920
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std
Boiler:
[Style - Dia.]

E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
30,375 Lbs.
Factor of
Adhesion:

5.17
Maximum
Safe Speed:

19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
125,000
Owners:
Merrill & Ring Lbr. Co. #5, Pysht, WA
(12-10-1936) Columbia Construction Co. #5, Ilwaco, WA; for use on jetty construction at the mouth of the Columbia River
(1938) Consolidated Builders Inc., #803, Grand Coulee Dam, WA, for Coulee Dam construction
Disposition: Scrapped
Additional Notes:
