Lima Locomotive Works, Inc.

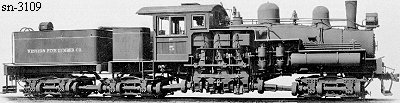

Photo Credit:
George R. Kadelak collection (BP 9-1920)
Shop Number 3109 - Built for: Western Pine Lbr. Co.
{2,530th Lima Built Shay}
Built:
9-22-1920
Class:
C
80-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
35,026 Lbs.
 Factor of
Adhesion:
5.48
 Maximum
Safe Speed:
20.9
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
158,300
Owners:
Western Pine Lbr. Co. #5, Klickitat, WA
(7-25-1922) J. Neils Lbr. Co. #3, Klickitat, WA
(3-31-1930) Tideport Log. Co. #5, Jewell, OR
Disposition: Scrapped
Additional Notes:
