Lima Locomotive Works, Inc.

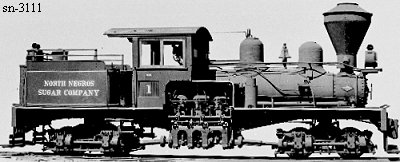

Photo Credit:
George R. Kadelak collection (BP 6-1920)
Shop Number 3111 - Built for: North Negros Sugar Co.
{2,532nd Lima Built Shay}
Built:
6-26-1920
Class:
B
24-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 8
Gear Ratio:
3.071
Wheel Dia.:
29"
Gauge:
24"
Boiler:
[Style - Dia.]
E.W.T. - 33.5"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
9,759 Lbs.
 Factor of
Adhesion:
6.49
 Maximum
Safe Speed:
11.2
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,050 Gallons
Empty Weight:
As built
53,000
Owners: (Includes new data after 2018 Shay book completed)
Huth, Gillespie & Co. (exporter), Shreveport, LA
North Negros Sugar Co. #1, unknown location, U. S. Territory of the Philippines
[36"] Talisay Silay Milling Co. #1, Manila, Luzon, U. S. Territory of the Philippines
(5-10-1938) [42"] Philippine Lbr. Mfg. Co., Catabangan, Luzon, U. S. Territory of the Philippines
Disposition: Scrapped
Additional Notes:
