Lima Locomotive Works, Inc.

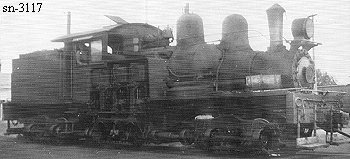

Photo Credit:
Left: Yawkey-Bissell hardwood Flooring Co. collection
Right: Robert Hanft collection
Shop Number 3117 - Built for: Marathon Lbr. Co.
{2,538th Lima Built Shay}
Built:
9-13-1920
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std
Boiler:
[Style - Dia.]

E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
22,563 Lbs.
Factor of
Adhesion:

5.28
Maximum
Safe Speed:

17.2
Fuel Type:
Coal
Fuel Capacity:
3.75 Tons
Water Capacity:
2,000 Gallons
Empty Weight:
As built
95,800
Owners:
(2-13-1920) Woodward, Wight & Co. (D)., New Orleans, LA (owned for 7 months)
(9-11-20) Marathon Lbr. Co. #10, Laurel, MS
(1-20-1921) Yawkey-Bissell Lbr. Co. #150, White Lake, WI
(1950) Marinette Iron and Metal Co., Marinette, WI
Disposition: (1950) Scrapped at Marinette, WI
Additional Notes:
