Lima Locomotive Works, Inc.

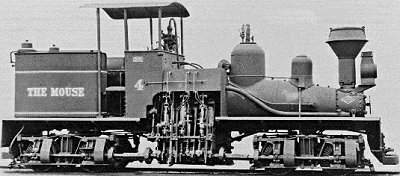

Photo Credit:
George R. Kadelak collection (BP 5-1920)
Shop Number 3119 - Built for: Good Roads Construction Co.
{2,540th Lima Built Shay}
Built:
5-22-1920
Class:
B
10-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 4.5 x 8
Gear Ratio:
2.467
Wheel Dia.:
22"
Gauge:
24"
Boiler:
[Style - Dia.]

E.W.T. - 18.5"
Boiler Pressure:
In Lbs. (PSI)
170
Tractive Effort:
3,474 Lbs.
Factor of
Adhesion:

7.57
Maximum
Safe Speed:

10.6
Fuel Type:
Coal
Fuel Capacity:
0.5 Ton
Water Capacity:
300 Gallons
Empty Weight:
As built
22,600
Owners:
Lima Locomotive Works, Inc. #3119, Lima, OH, held for stock in yards
(2-16-1928) [42"] The Monsarrat Mining Co. #4, " THE MOUSE", Bemis, WV
(3-28-1930) Davis Coal & Land Co. #4, Bemis, WV
Disposition: Scrapped
Additional Notes: Built for: Good Roads Construction Co., not shipped
