Lima Locomotive Works, Inc.
Photo Credit:

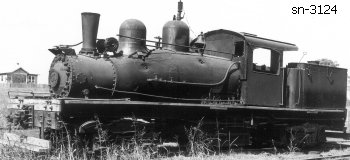

Left: Marc Reusser collection (BP 8-1920)

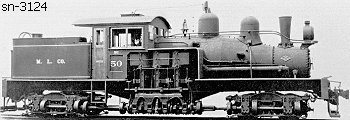

Right: George R. Kadelak collection
Shop Number 3124 - Built for: Marathon Lbr. Co.
{2,545th Lima Built Shay}
Built:
8-28-1920
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std
Boiler:
[Style - Dia.]

E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
22,563 Lbs.
Factor of
Adhesion:

5.20
Maximum
Safe Speed:

17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Ton
Water Capacity:
2,500 Gallons
Empty Weight:
As built
94,000
Owners:
Marathon Lbr. Co. #50 Laurel, MS
(12-4-1929) Ed L. Bruce Co. #50, Laurel, MS
Disposition: (1940's) Scrapped
Additional Notes:
