Lima Locomotive Works, Inc.
Photo Credit:
George R. Kadelak collection (BP 8-1920)

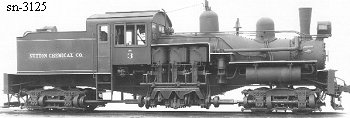

Shop Number 3125 - Built for: Lima Locomotive Works
{2,546th Lima Built Shay}
Built:
8-31-1920
Class:
B
60-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std
Boiler:
[Style - Dia.]
E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
23,868 Lbs.
 Factor of
Adhesion:
6.04
 Maximum
Safe Speed:
19.4
Fuel Type:
Coal
Fuel Capacity:
3.75 Tons
Water Capacity:
2,500 Gallons
Empty Weight:
As built
117,000
Owners:
Lima Locomotive Works, Inc. #3 (2nd), Lima, OH (plant switcher)
Sutton Chemical Co. #3, West Sutton, WV
(1-27-1937) Miner-Edgar Chemical Corp. #3, Sutton, WV
Disposition: (1940's) Scrapped
Additional Notes:
