Lima Locomotive Works, Inc.

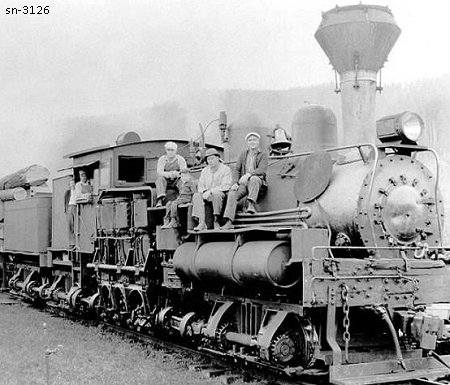

Photo Credit:
by Darius Kinsey
Shop Number 3126 - Built for: St. Paul & Tacoma Lbr. Co.
{2,547th Lima Built Shay}
Built:
10-20-1920
Class:
C
90-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 14.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std
Boiler:
[Style - Dia. ]
E.W.T. - 58"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
40,107 Lbs.
 Factor of
Adhesion:
5.12
Maximum
Safe Speed:
20.9
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,500 Gallons
Empty Weight:
As built
169,000
Owners:
St. Paul & Tacoma Lbr. Co. #5, Kapowsin, WA
Disposition: (8-1949) Scrapped
Additional Notes:
