Lima Locomotive Works, Inc.

Photo Credit:

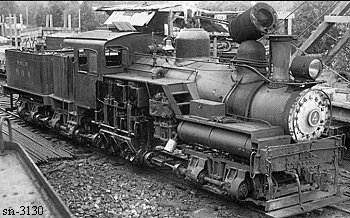

Left: by Clark Kinsey (c1938) - Right: by Harold A. Hill (1938)
Shop Number 3130 - Built for: Forked Leaf White Oak Lbr. Co.
{2,551st Lima Built Shay}
Built:
10-9-1920
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.278
Wheel Dia.:
40" (36")*
 Gauge:
std
Boiler:
[Style - Dia. ]
E.W.T. - 56"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
32,483 Lbs.
 Factor of
Adhesion:
4.98
 Maximum
Safe Speed:
20.9
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
127,000
Owners:
Forked Leaf White Oak Lbr. Co. #10, West Eminence, MO
(by 2-4-1926) Current River Lbr. Co., West Eminence, MO
Birmingham Rail & Loco. Co. (D) #1724, Birmingham, AL
(2-24-1930) Raymond Lbr. Co. #10, Raymond, WA
(3-24-1930) Lewis Mills & Tbr. Co. #10, Frances, WA
(5-1931) Willapa Harbor Lbr. Mills #4 later #904 (1938), Raymond, WA
(11-11-1943) M. B. Log. Co. (Markham Shingle). #10, Markham, WA
Disposition: (3-11-1947) Scrapped 3-11-1947
Additional Notes: * Lima records give conflicting reports on the "as built" wheel size.

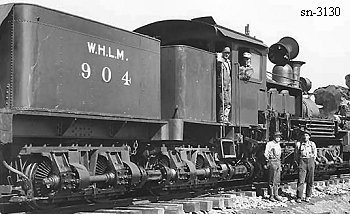

Right photo by Harold A. Hill (1938) was taken while Shay was being renumbered from #4 to #904.
