Lima Locomotive Works, Inc.
Photo Credit:

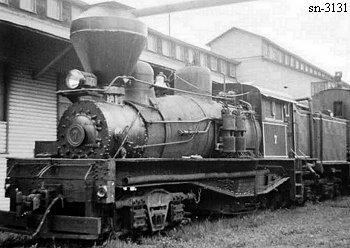

Left: by unknown

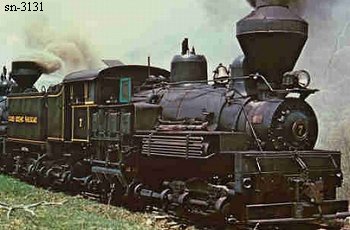

Right by Ivan Clarkson
Shop Number 3131 - Built for: Raine Lbr. Co.
{2,552nd Lima Built Shay}
Built:
10-23-1920
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std
Boiler:
[Style - Dia. ]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
5.30
 Maximum
Safe Speed:
19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
129,100
Owners:
Raine Lbr. Co. #3, Honeydew, WV
Raine Lbr. Co. #3, Clover Lick, WV
(1928) Raine Lbr. & Coal Co., Duo, WV
(8-2-1935) Meadow River Lbr. Co. #7, Rainelle, WV
(12-1964) State of West Virginia, Cass Scenic RR #7, Cass, WV
(11-1970) Sidelined with boiler problems, used for parts, may be restored
Disposition: on storage track @ Cass Railroad, Cass, WV
Additional Notes:
SLc Survivor List
