Lima Locomotive Works, Inc.

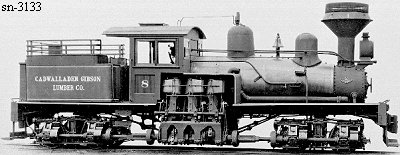

Photo Credit:
George R. Kadelak collection (BP 9-1920)
Shop Number 3133 - Built for: Cadwallader-Gibson Lbr. Co.
{2,554th Lima Built Shay}
Built:
9-15-1920
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
29"
Gauge:
std
Boiler:
[Style - Dia. ]
E.W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
14,316 Lbs.
 Factor of
Adhesion:
5.47
 Maximum
Safe Speed:
16.8
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,200 Gallons
Empty Weight:
As built
65,000
Owners: (Includes new data after 2018 Shay book completed)
Cadwallader-Gibson Lbr. Co. #8, Limay, Bataan Province, U. S. Territory of the Philippines
Disposition: Scrapped
Additional Notes: Shipped thru H. W. Peabody & Company
