Lima Locomotive Works, Inc.
Photo Credit:
Both: George R. Kadelak collection

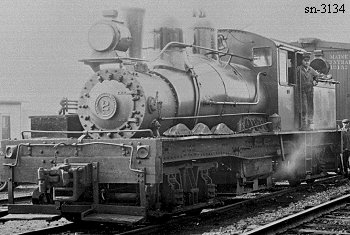

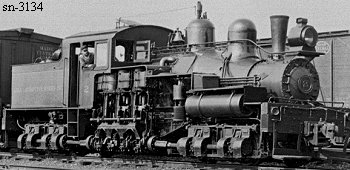

Shop Number 3134 - Built for: Aloha Lbr. Co. (cancelled)
{2,555th Lima Built Shay}
Built:
10-16-1920
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std
Boiler:
[Style - Dia. ]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
4.80
Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
87,000
Owners: (Includes new data after 2018 Shay book completed)
Lima Locomotive Works, Inc. #2 (3rd), Lima, OH (plant switcher after order cancelled
(6-12-1936) Elizalde & Co., Ltd., Manila, Luzon, U. S. Territory of the Philippines, For:
Anakan Lbr. Co., #3, Gingoog, Misamis Oriental, U. S. Territory of the Philippines
Disposition: Scrapped
Additional Notes:
