Lima Locomotive Works, Inc.

Photo Credit:
George R. Kadelak collection
Photo Credit:
Top: George R. Kadelak collection (BP 12-1920)
Left: National Oceanic & Atmospheric Adminstration (NOAA),

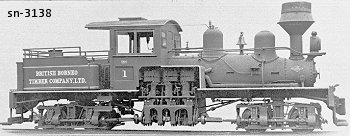

Shop Number 3138 - Built for: British Borneo Tbr. Co.
{2,558th Lima Built Shay}
Built:
12-7-1920
Class:
B
24-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 8
Gear Ratio:
3.071
Wheel Dia.:
29"
Gauge:
36"
Boiler:
[Style - Dia. ]
E.W.T. - 33.5"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
9,759 Lbs.
 Factor of
Adhesion:
7.30
Maximum
Safe Speed:
11.2
Fuel Type:
Wood
Fuel Capacity:
1 Cord
Water Capacity:
830 Gallons
Empty Weight:
As built
62,380
Owners:
British Borneo Tbr. Co. Ltd. #1 (Irwin-Harrisons & Crosfield Inc.), Sandakan, British North Borneo
Disposition: (1949) Scrapped
Additional Notes:
