Lima Locomotive Works, Inc.

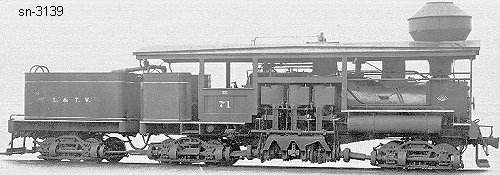

Photo Credit:
George R. Kadelak collection (BP 12-1920)
Shop Number 3139 - Built for: Eastman, Gardiner & Co.
{2,559th Lima Built Shay}
Built:
12-9-1920
Class:
C
60-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std
Boiler:
[Style - Dia. ]
E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
26,852 Lbs.
 Factor of
Adhesion:
5.55
 Maximum
Safe Speed:
17.2
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
3,000 Gallons
Empty Weight:
As built
124,000
Owners:
Eastman, Gardiner & Co., Laurel & Tallahoma Western RY #71, Laurel, MS
(4-2-1922) Converted to oil burner
(10-1937) Green Lbr. Co. #71, Laurel, MS
Disposition: (1948) Scrapped
Additional Notes:
