Lima Locomotive Works, Inc.

Photo Credit:
George R. Kadelak collection (BP 11-1920)

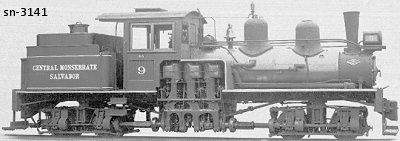

Shop Number 3141 - Built for: Central Monserrate Sugar Co.
{2,560th Lima Built Shay}
Built:
11-29-1920
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 10
Gear Ratio:
3.071
Wheel Dia.:
27.5"
Gauge:
23.625"
[60cm]
Boiler:
[Style - Dia. ]

E.W.T. - 35.375"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
12,865 Lbs.
Factor of
Adhesion:

4.83
Maximum
Safe Speed:

10.7
Fuel Type:
Oil
Fuel Capacity:
500 Gals.
Water Capacity:
1,050 Gallons
Empty Weight:
As built
51,000
Owners:
Riera, Toro & Von Twistern (Fredico Calaf), Havana, Cuba , For:
Central Monserrate Sugar Co., Central Monserrate RY #9, Salvador, U. S. Territory of Puerto Rico
Disposition: Scrapped
Additional Notes: also listed as being in San Juan, PR
