Lima Locomotive Works, Inc.

Photo Credit:
Marc Reusser collection (4-28-1948)

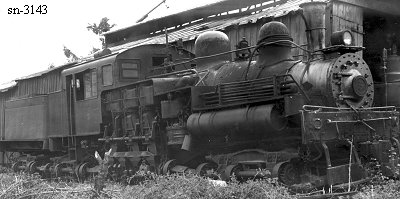

Shop Number 3143 - Built for: Lyman Tbr. Co.
{2,562nd Lima Built Shay}
Built:
9-29-1920
Class:
C
80-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std
Boiler:
[Style - Dia. ]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
36,026 Lbs.
 Factor of
Adhesion:
5.05
Maximum
Safe Speed:
20.9
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,500 Gallons
Empty Weight:
As built
145,800
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Lyman Tbr. Co. #5, Hamilton, WA
(1937) Soundview Pulp Co. #5, Hamilton, WA
Disposition: (1950) Scrapped
Additional Notes:
